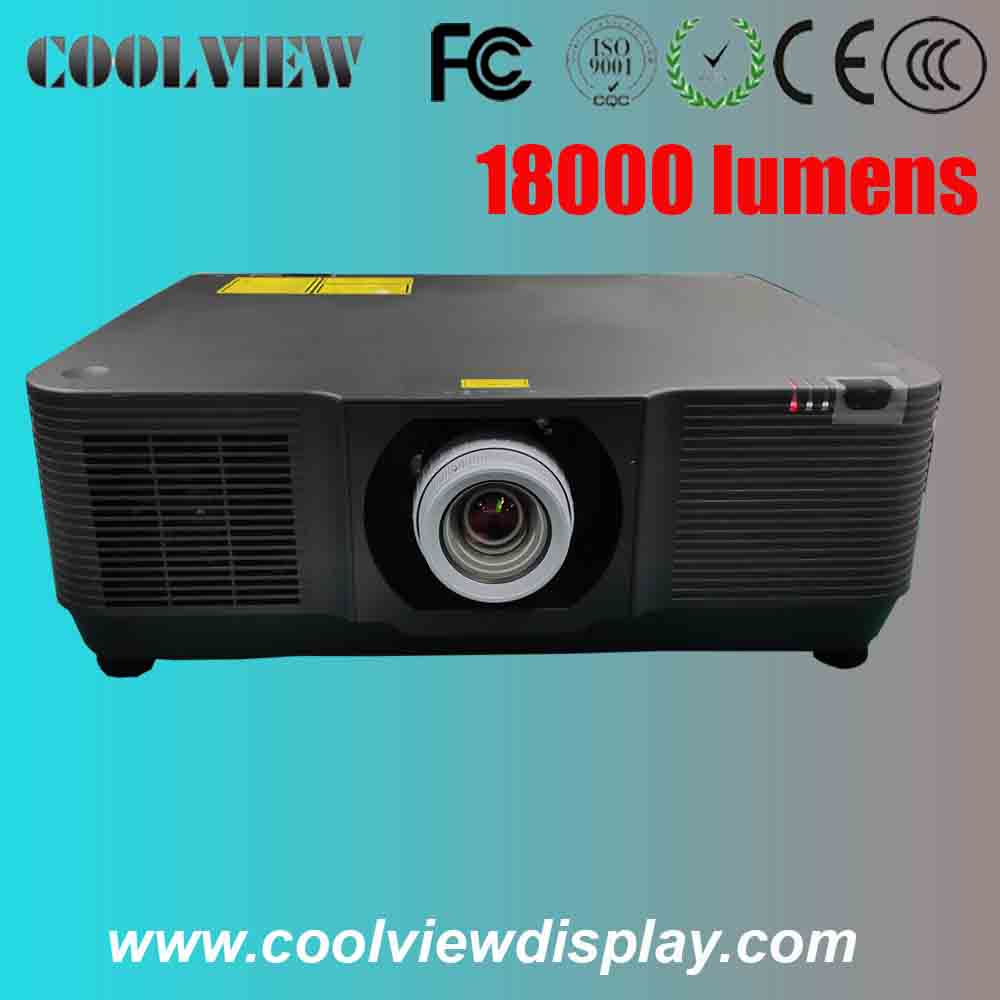

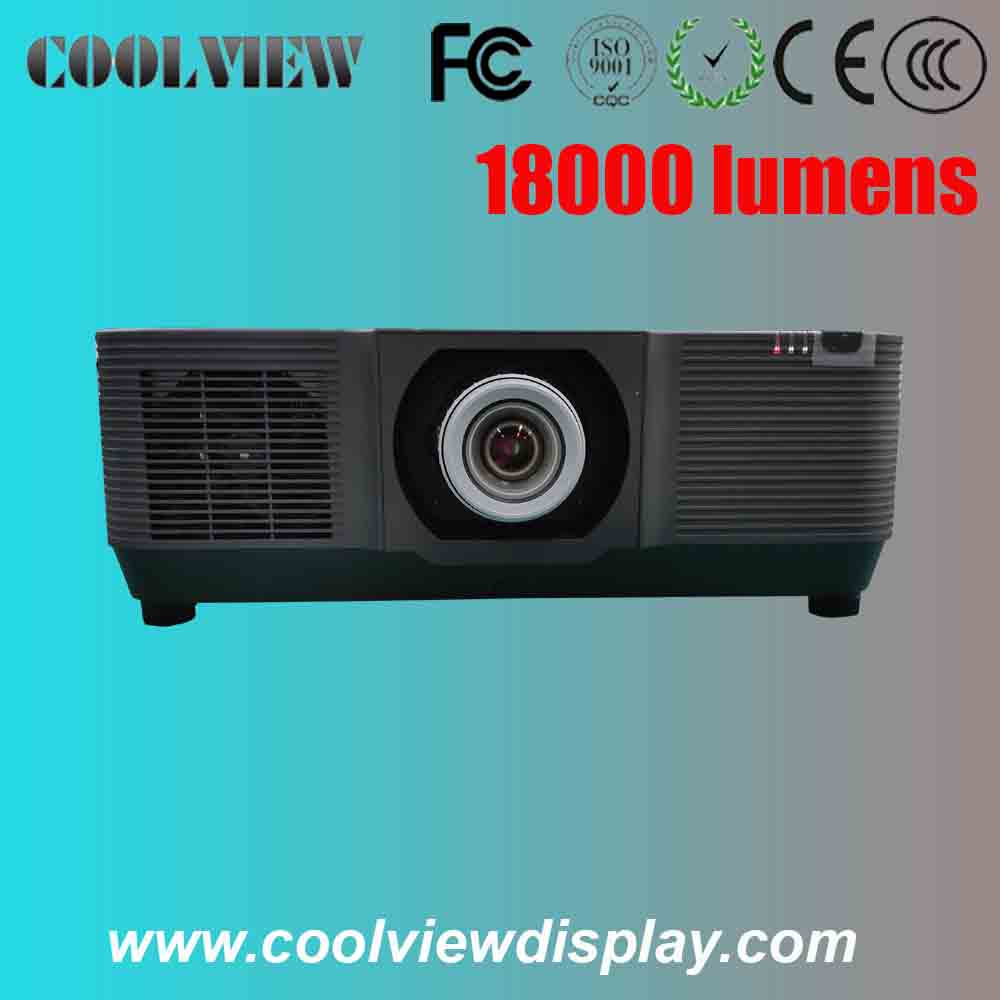

| Basic Parameters: CVDL18U |
| Display Technology |
3LCD |
| Native Resolution |
WUXGA 1920* 1200 |
| Max. Video Input |
4K |
| Brightness |
18000 ansi lumens |
| Contrast |
100000:1 Contrast Ratio |
| Fan Noise |
As low as 27 dBa |
| Aspect Ratio |
16:10 Native,16:9 Compatible |
| Projection Method |
Front, Rear,Ceiling,Table Top;Projection Image support horizontal and vertical flip |
| Weight |
25 kg |
| I/O Connectors |
Inputs: |
VGAx1; Y, Pb/Cb, Pr/Crx1; S-Videox1; HDMI⑤x2; DVIx1; CVBSx1; HDBaseTx1; IRx1; RS232x1; RJ45x1 |
| Maximum Resolution |
4K via HDMI Terminal |
| Computer Compatibility |
Standard 1080P(1920x1080),WSXGA+,WXGA+,WXGA(1280x800/1280x768),UXGA, SXGA, XGA, SVGA, VGA, Mac… |
| Video Compatibility |
PAL (B, D, G, H, I, M, N, 576i/p), NTSC (M, 4.43/3.58 MHz, 480i/p), SECAM (B, D, G, K, K1, L) HD (1080P, 720p) |
| Displayable Colours |
1.07 Billion |
| |
Power Lens Shift: |
U/D -40%to 120%; L/R 20% |
| Lens Optional: |
Short throw lens,Long throw lens,Ultra-short focal-lens,360-degree wide-angle lens,Spherical Fisheye lens |
| Throw Ratio |
1.46-2.95:1(STD) |
| Projection Screen Size |
100" at 2.94m |
| Projection Distance |
1.025-25.48m(Standard Power Lens ) |
| Lamp Type/Lamp Life |
1050W Roller type laser light source, 20000 hours life |
| Keystone Correction * |
± 40° Vertical ± 30° Horizontal |
| Dimensions (W x D x H) |
560x558x295 mm |
| Remote Control |
Full function remote with direct source selecting |
| Power Supply |
100-240V, 50-60Hz |
| Power Consumption |
1088W |
| Operating Conditions |
5°C - 40°C, Max. Humidity 85%, Max. Altitude 3000m |
| Uniformity |
90% |
| Standard Accessories |
AC Power Cord,VGA Cable, Remote Control,Quick Start Card,CD User Manual, Warranty Card |
| Optional Accessories |
Ceiling Mount Kit, Additional Ultra long Cable |
| Guarantee |
Projector 5 years |
| Outstanding Features |
● 18,000 ANSI Lumens bright, with 90% uniformity and a 100000:1 Contrast Ratio.
● 3LCD imaging for rich, color saturated computer and video projection.
● 24*7 hrs long time working without problem.
● No weaken on brightness after 3 years usage.
● Optional wide-angle and telephoto lenses. Instant lens change system.
● 1 seconds for turn on the projector,fast then other type in this area.
● Includes most professional input configurations, including BNC and DVI.
● Vertical and Horizontal power lens shift and digital keystone correction.
● 16-bit color reproduction for superior color reproduction.
● Native WUXGA resolution. Compatible with inputs up-to 4K Support by HDMI.
● Variable Power Management option. Optional local or remote keylock.
● Custom warm-up screen option. Built-in Color Auto Picture Control.
● Built-in network(RJ45) monitoring and control. Optional network content delivery.
● 5 year projector warranty! |
|
